Description

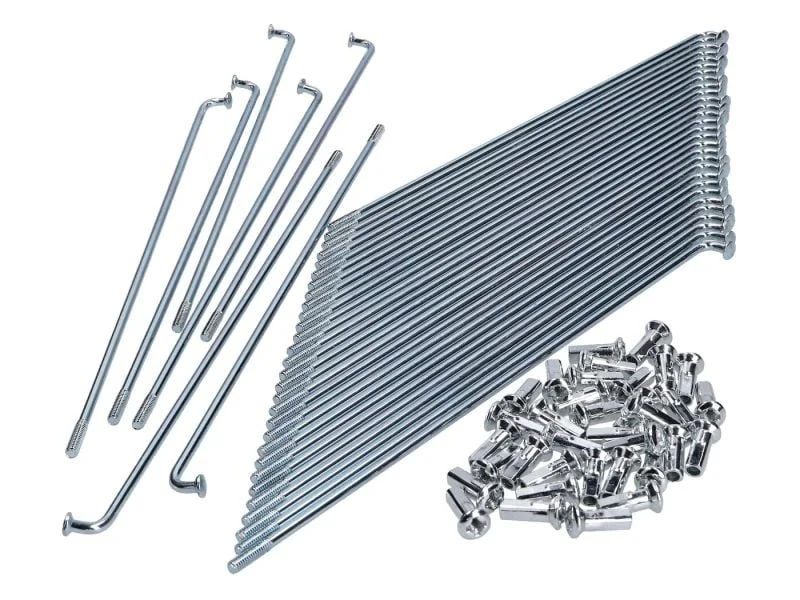

Spoke set for 17 “rims

Set consisting of as many as 72 individual parts to string 17 “spoke rims. Note: Since the spokes can be used for many different machines and rims, refer to examining whether the following specifications fit the rim you need.

Specifications, spokes:

• Total length: 190mm.
• Length, from bending: 188mm.
• Length, thread: 11mm.
• Length, bend: 10.5mm.
• Angle, bend: 92 degrees.
• Diameter, spokes: 2.9mm.
• Diameter, found: 3.2mm.
• Diameter, head: 5.7mm.
• Quantity: 36 pcs.

Specifications, nipples:

• Total length: 14.7mm.
• Diameter, head: 8mm.
• Diameter, 5mm.
• Quantity: 36 pcs.
